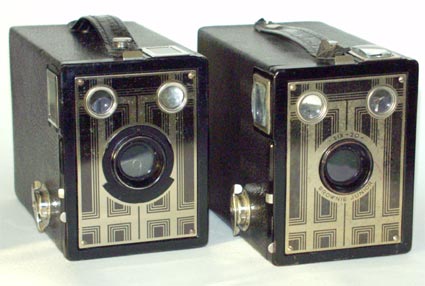

Two variants exist of this Art-Deco front face : with and without mention "Six-20 Brownie Junior".

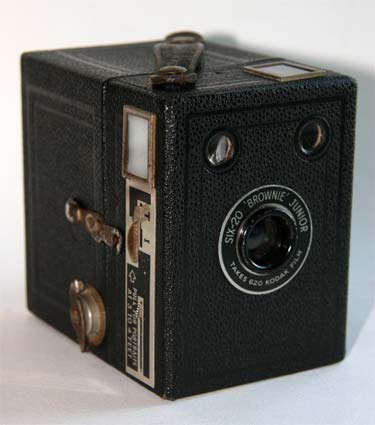

No diaphragm on this simple camera. The aperture, which consists of
two holes, is selected by pulling a tab on top of the camera (like for
the Brownie N°2).
Another tab to the right of the aperture tab is used to lock the
shutter open for long exposures. The framing is done using one of the two reflex viewfinders.
To open this camera is like trying to find the secret of a
chinese mystery box!... You must first pull on the film advance key then,
pull up the button to which the handle is attached. The back will then
slide out and you may load the 620 film.
User manual for
"Brownies" Juniors
Six-16 & Six-20
Thanks to Annie for this document !
