ROYER - Royflex III (1954)

Reflex Bi-Lens

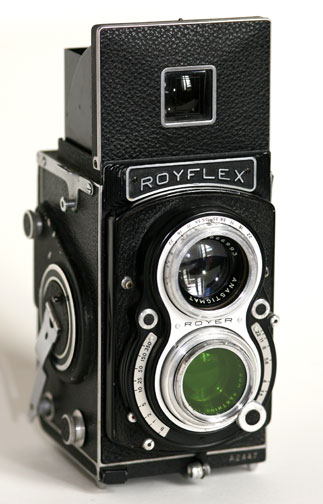

RoyFlex III (1954)

The Royflex III is the most famous model of this series produced by Royer. The particularity of this camera is to have the film advance system linked to mechanism rearming the shutter. All done by just turning the handle.


This camera is equipped with a shutter Royer Synchromat (1s, 1/2s, 1/5s, 1/10s, 1/25s, 1/50s, 1/150s, 1/350s). It also has a self-timer and a pause B.


On its front face, two flash contacts are visible. The first one (F) is synchronized with a 5 milliseconds delay to allow the use of megnesium bulbs. The second ( X) is synchronized for electronic flash used at all speed.


The two coupled lenses are :

bullet Anagstigmat - 1:2,8 (view lens)
 Serial number : B66993
bullet Flor-Som-Berthiot - 1:3,5 - f=75 mm (Optical lens)
 Serial number : B67976

The heavy body is in cast-iron covered with black leather.

Using a 6 x 6 format film on 120 rollfilm.
The serial number is engraved on the bottom right of the front side.
